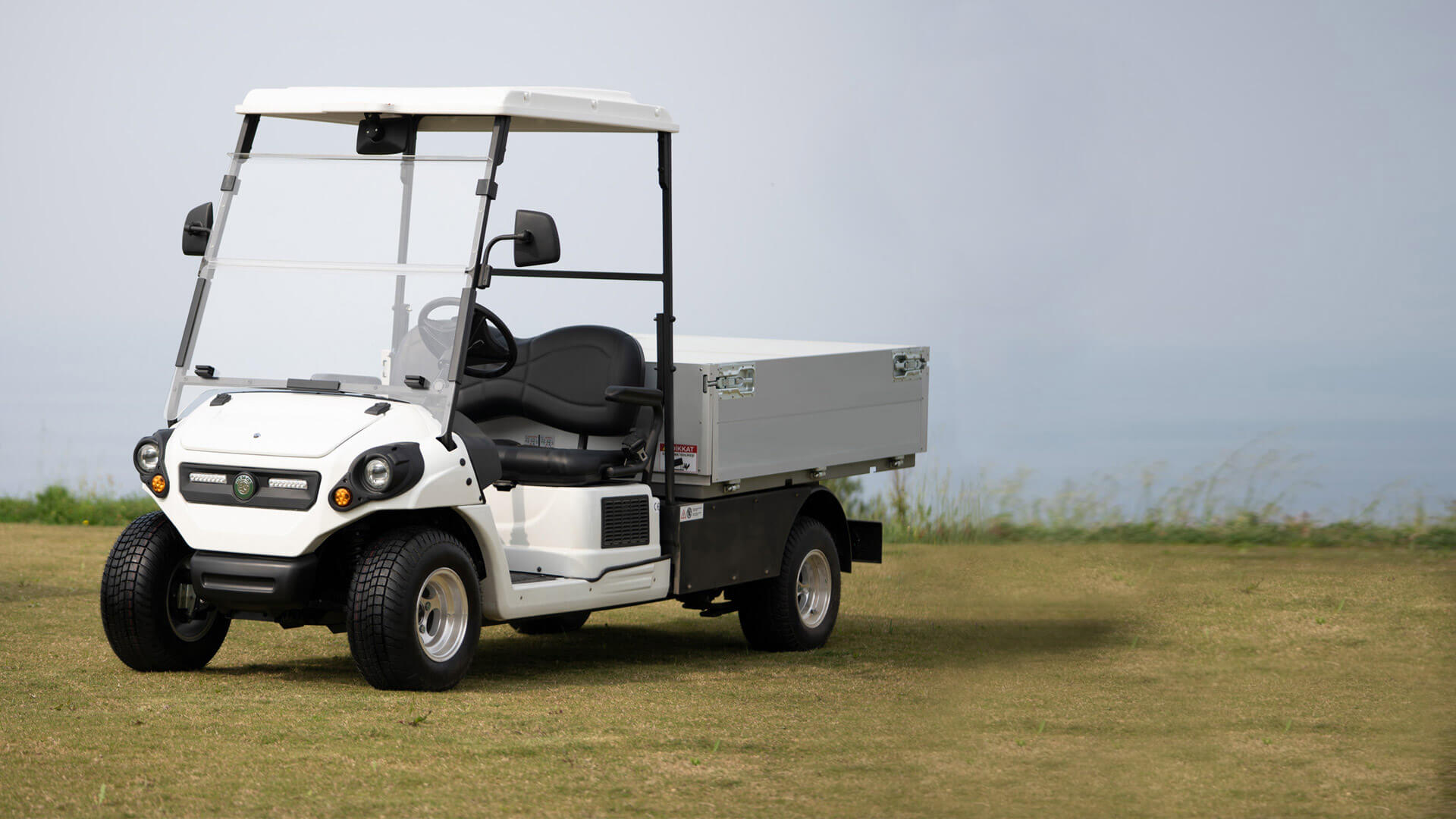

PC-W | Technical Specifications

EASE YOUR BURDEN PC-W

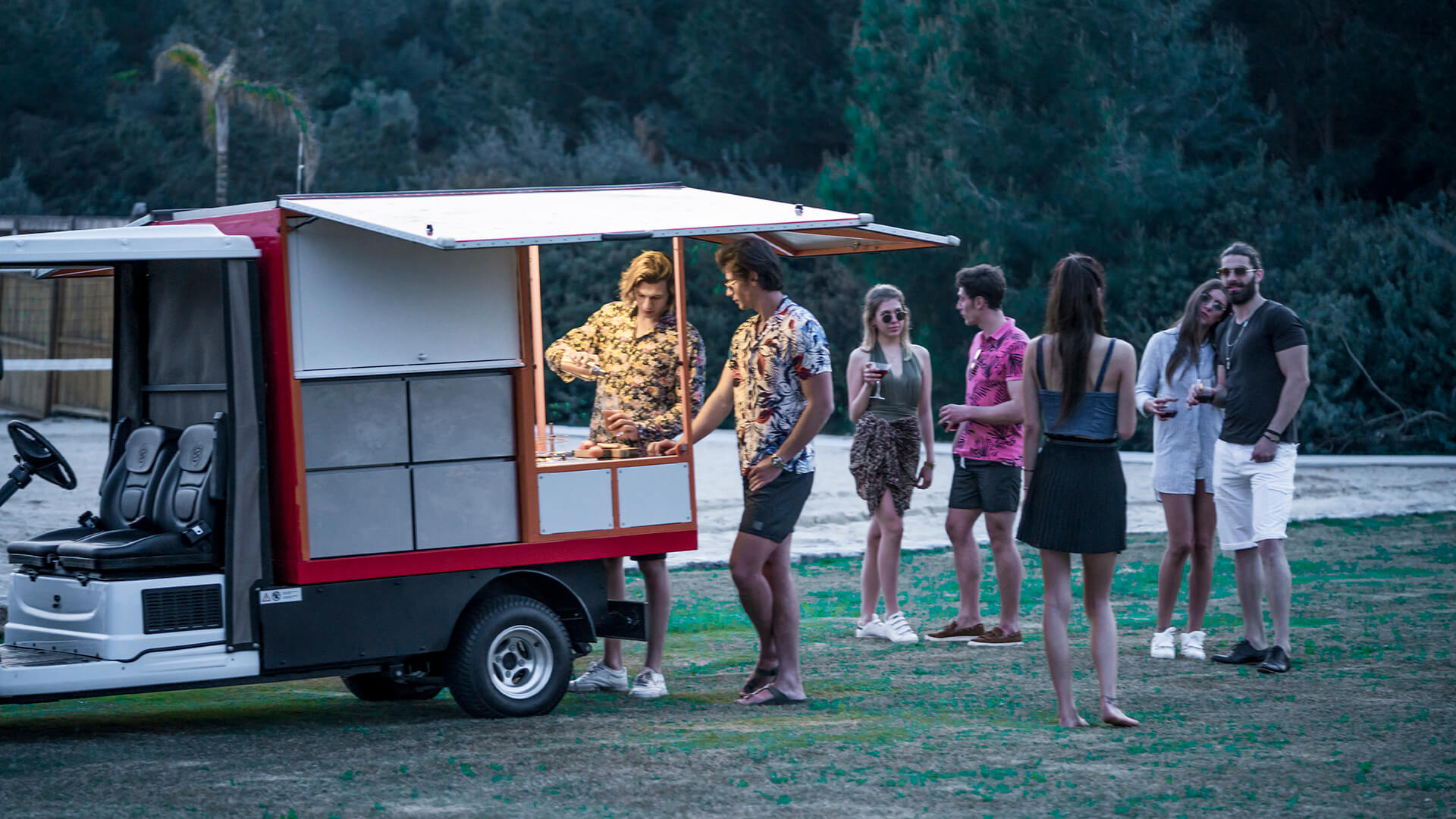

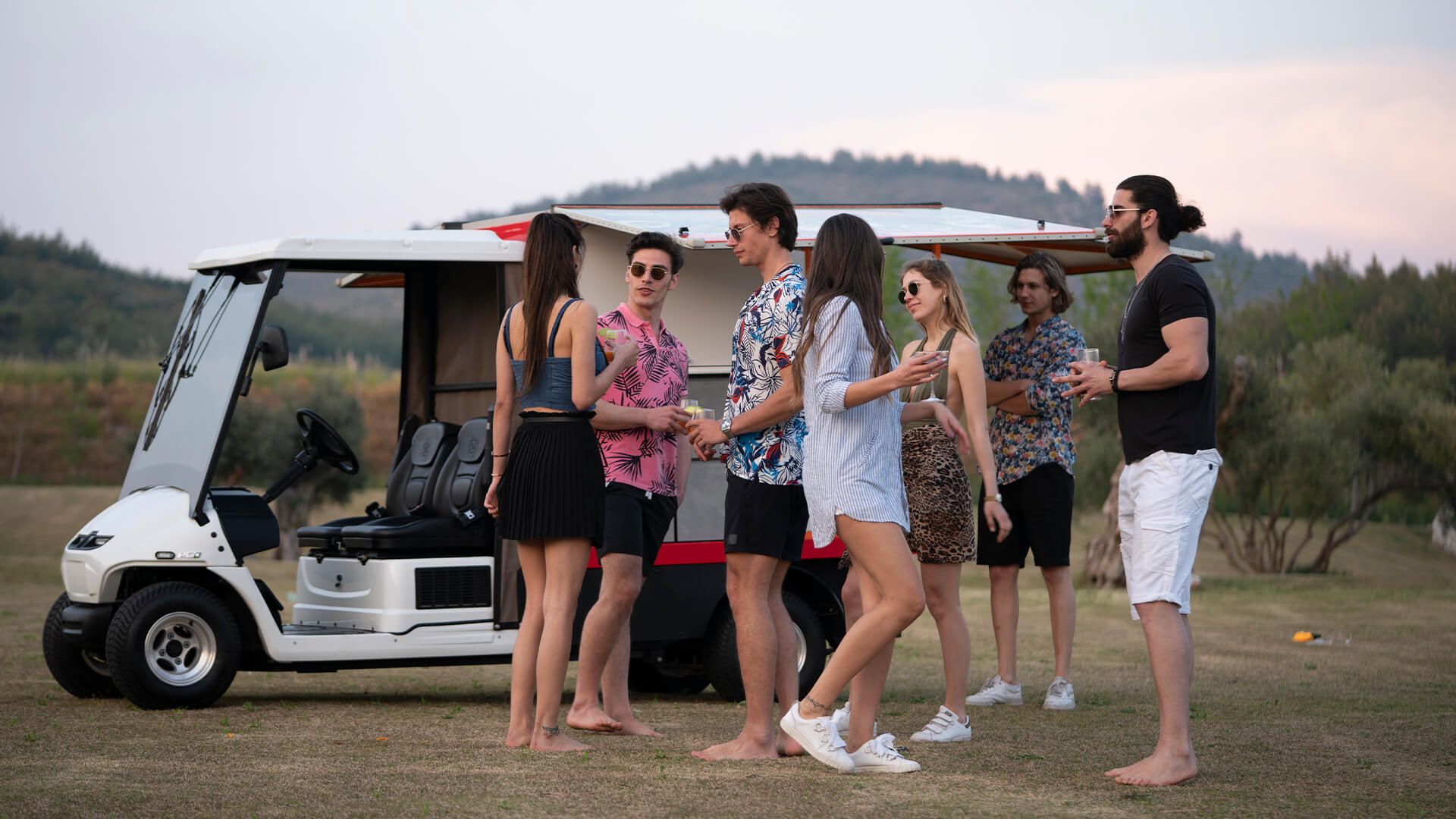

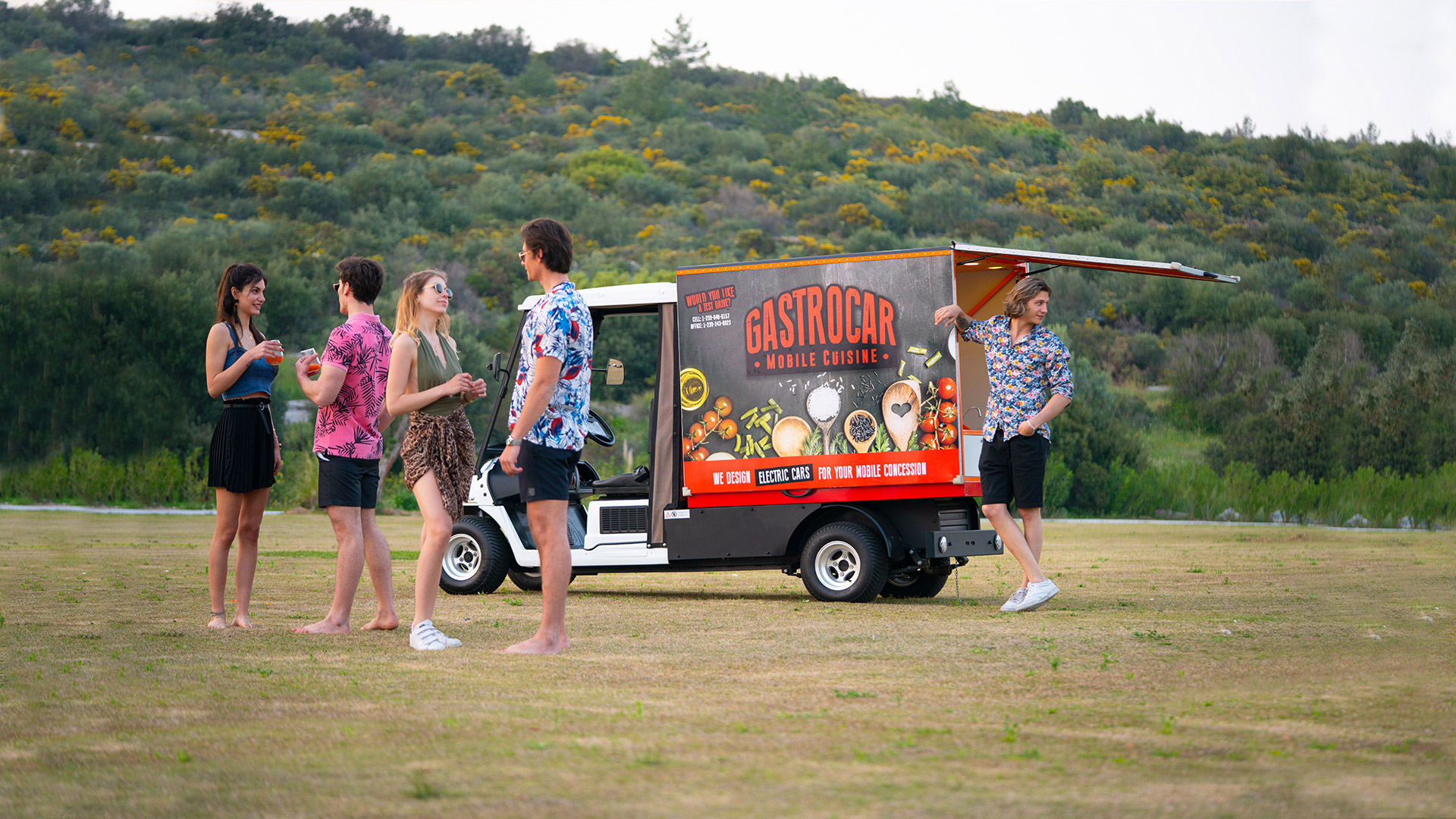

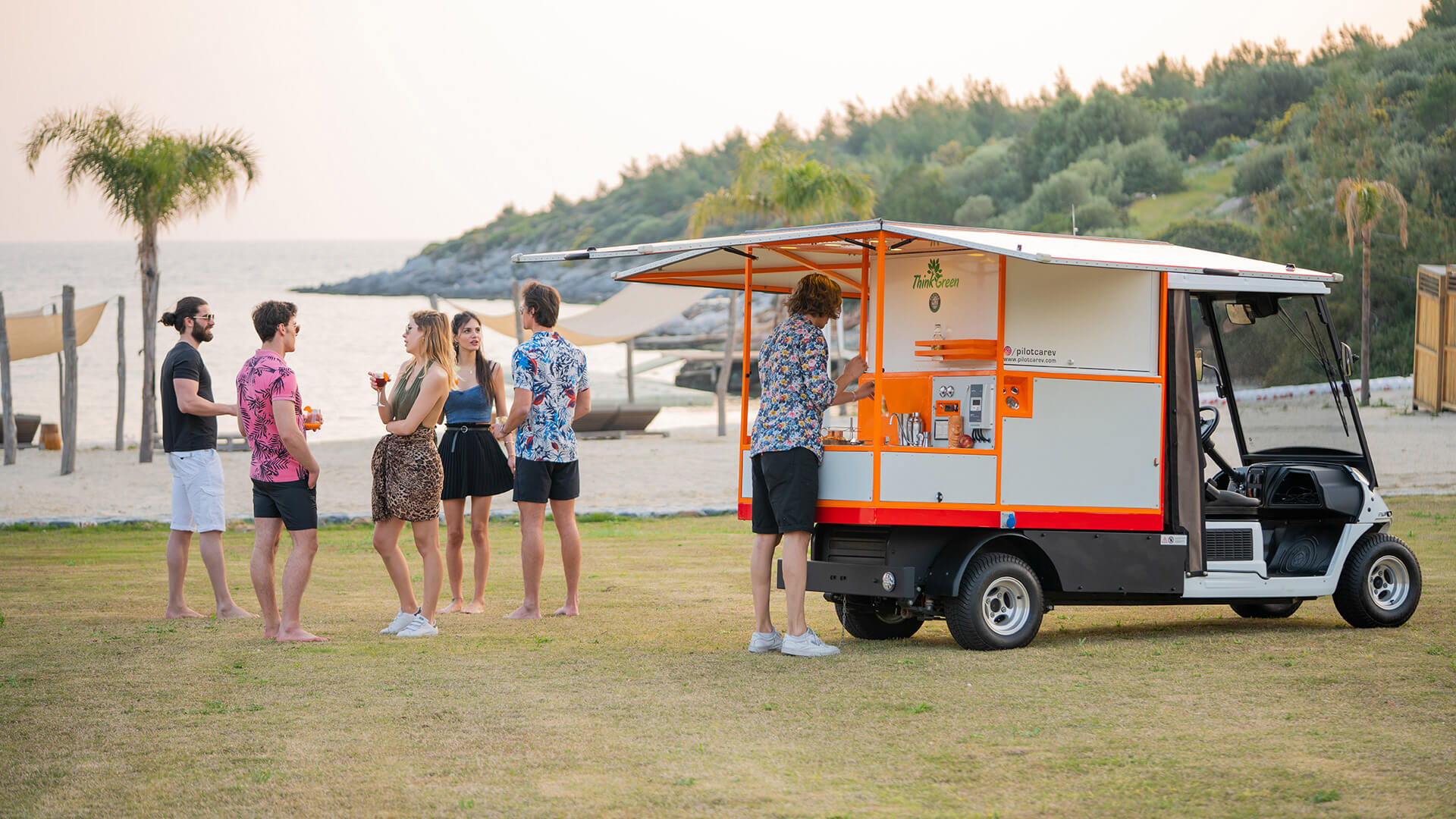

PRACTICAL SOLUTION TO YOUR BUSINESS PC-Gastrocar

STRONG CO-WORKER PC-W

ON BOARD CHARGING UNIT

With 110-220 Volt system voltage,
recharge within 4-6 hours

80 KM RANGE

With full charge
80 km range

0 EMISSION

100% electrical,
environmentally friendly

AC MOTOR

Clean environment,
high performance

SOLID & AESTHETIC

With the dynamic and elegant design,
all eyes are on you

REGENERATIVE BRAKE SYSTEM

Increase of efficiency in
energy consumption

BODY FACELIFT FRONT BODY

Designed to meet the needs of professionals,
based on their experiences.

See All

SEAT PREMIUM SEAT - CARBON BLACK

Designed to meet the needs of professionals,
based on their experiences.

See All

POWER
ELECTRIC-48 V (AC)

Motor Power

AC
6 kW (8.20 hp) Rated
12.46 kW (16.95 hp) Peak

10 kW (13.60 hp) Rated
22.43 kW (30.50 hp) Peak

Lead-Acid Battery Package 8x6V (11.52 kWh)
Lithium Battery Package (10.8 kWh)

Charge Unit

Lead-Acid Battery Package
DELTA-Q QuiQ 1000 Onboard
Charge Unit
110-220 VAC@8 1A/48V

Lithium Battery Package
OVARTECH 3.3 kW Onboard
Charge Unit
85-265 VAC@16A 40A/48V

Motor Control Unit

AC CURTIS (450 A-600 A)
SEVCON (450 A-650 A)

Power

Steering & Suspension System

Brake System

Body & Chassis

Performance

General

Dimensions

Warranty

CO-WORKER

WE NEVER WITNESSED IT GETS TIRED

FOR GENERAL AND SPECIAL SOLUTIONS

STEERING & SUSPENSION SYSTEM
Steering	Self-compensating double reduction helical rack-and-pinion
Suspension Front	Fully independent McPherson style strut suspension
Suspension Rear	Semi independent leaf springs w/dual hydraulic shocks

BRAKE SYSTEM
Service brake	Self adjusting mechanical, rear wheel drum brakes and regenerative brake Option: 4-wheel hydraulic drum brake system
Parking Brake	Foot actuated multi-lock parking brake Option: Elektromagnetic parking brake

BODY & CHASSIS
Body	Naturally colored Thermoplastic ABS White
Chassis	Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint

PERFORMANCE
Max. Forward Speed	15 mph - 22 mph (24 kph - 35 kph) *
Max. Reverse Speed	5 mph (8 kph)
Range	Lead-Acid Battery Package 80 km Lithium Battery Package 80 km
Max. Gradeability	25%
Charge Time	Lead-Acid Battery Package 80% - 7 hrs 100% - 9 hrs Lithium Battery Package 80% - 4 hrs 100% - 6 hrs
Turning Radius	14.4 ft (4.4 m)
* Adjustable ** EU: 134/2014

GENERAL
Curb Weight	Lead-Acid Battery Package 661 kg * Lithium Battery Package 520 kg *
Passenger Capacity	1+1 Passenger
Load Capacity	1763 lb (800 kg)
Tow Capacity	3306 lb (1500 kg)
Tyre Dimensions	20.5 x 8-10 (6 ply)
* Standart Vehicle w/ batteries

DIMENSIONS Standart Vehicle w/o Options
Length	143.3 in (3640 mm)
Width	51.5 in (1310 mm)
Height	76.7 in (1950 mm) * 48 in (1220 mm) **
Wheelbase	98.4 in (2500 mm)
Ground Clearance	5.6 in (143 mm)

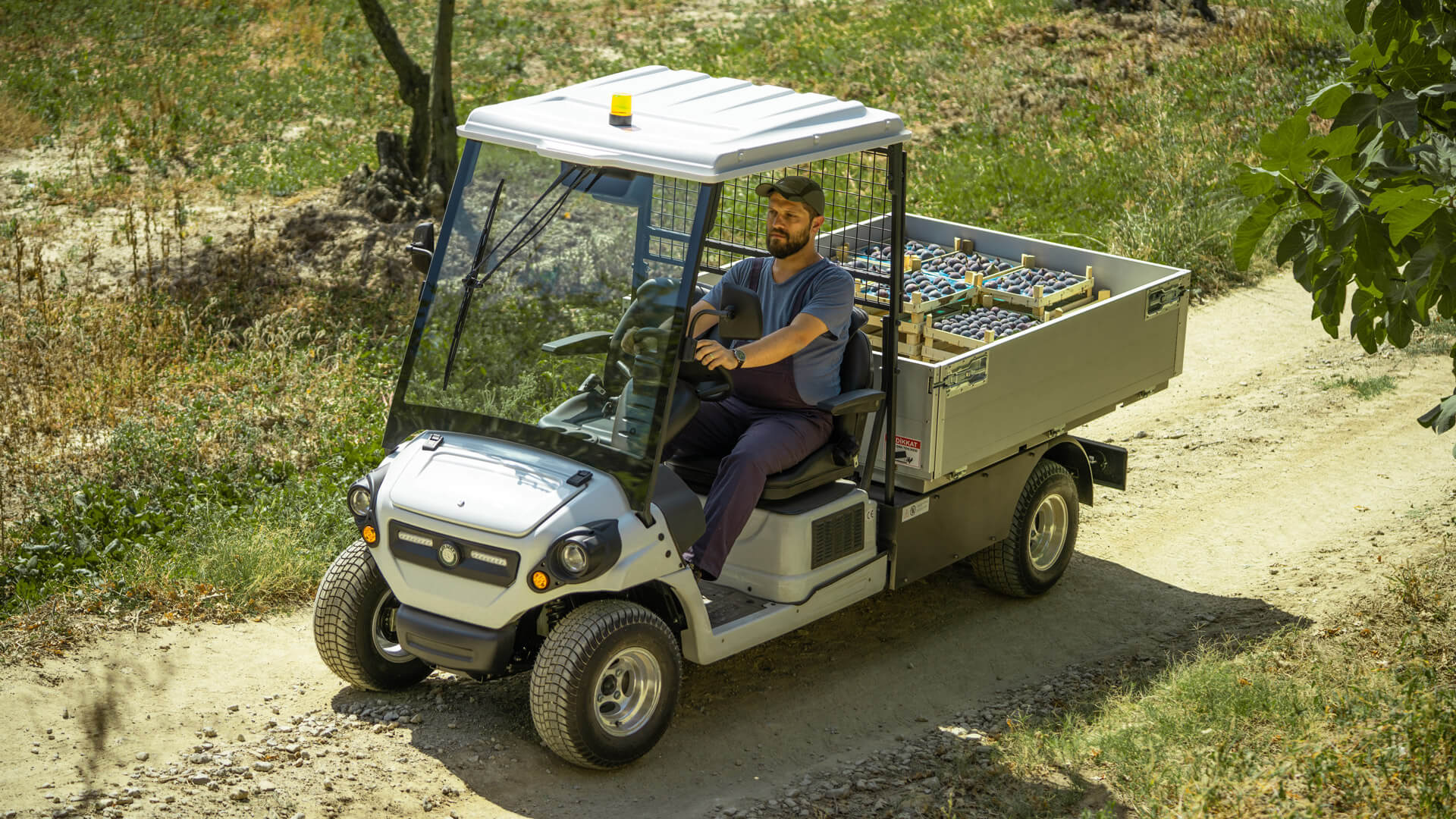

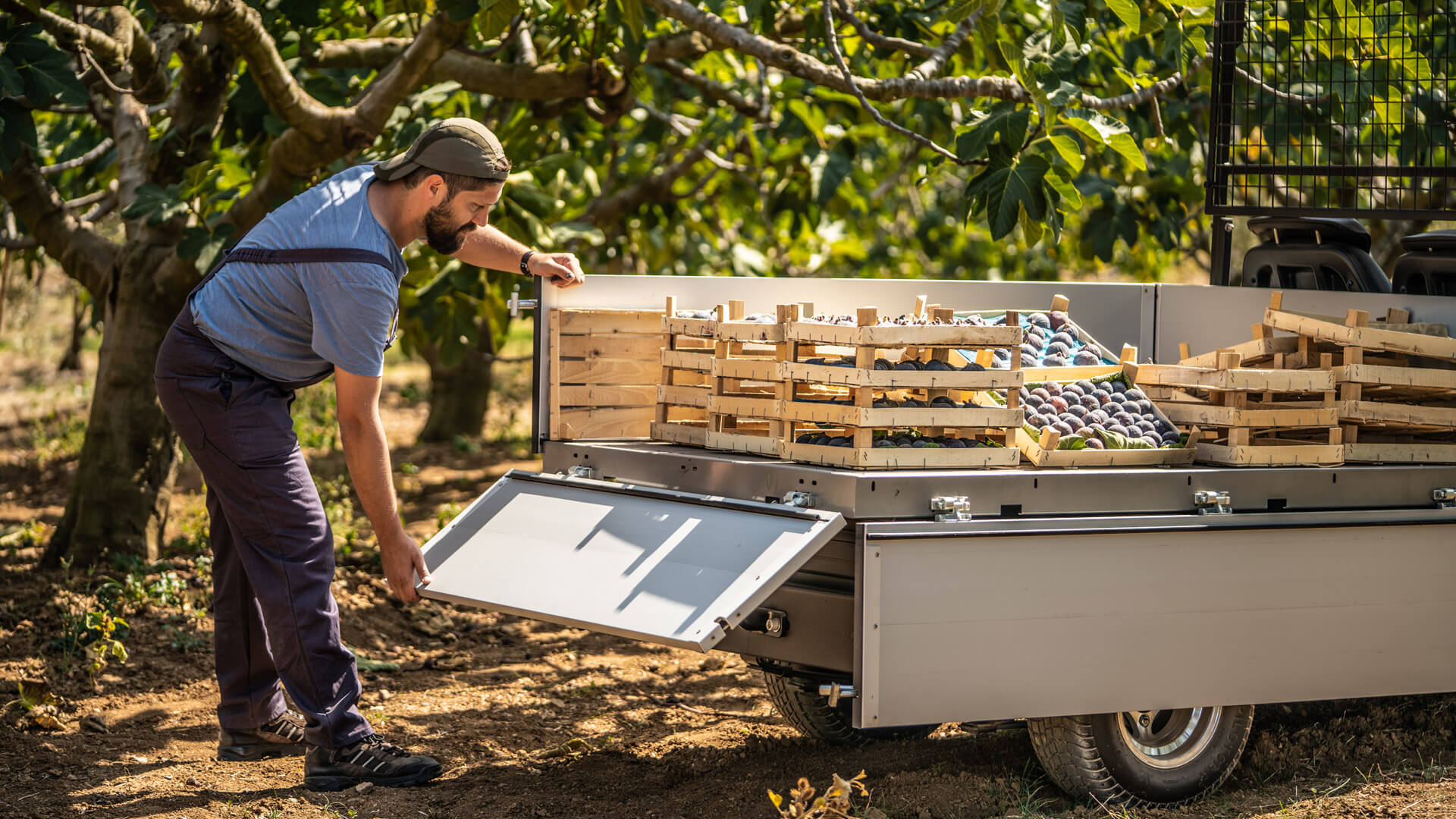

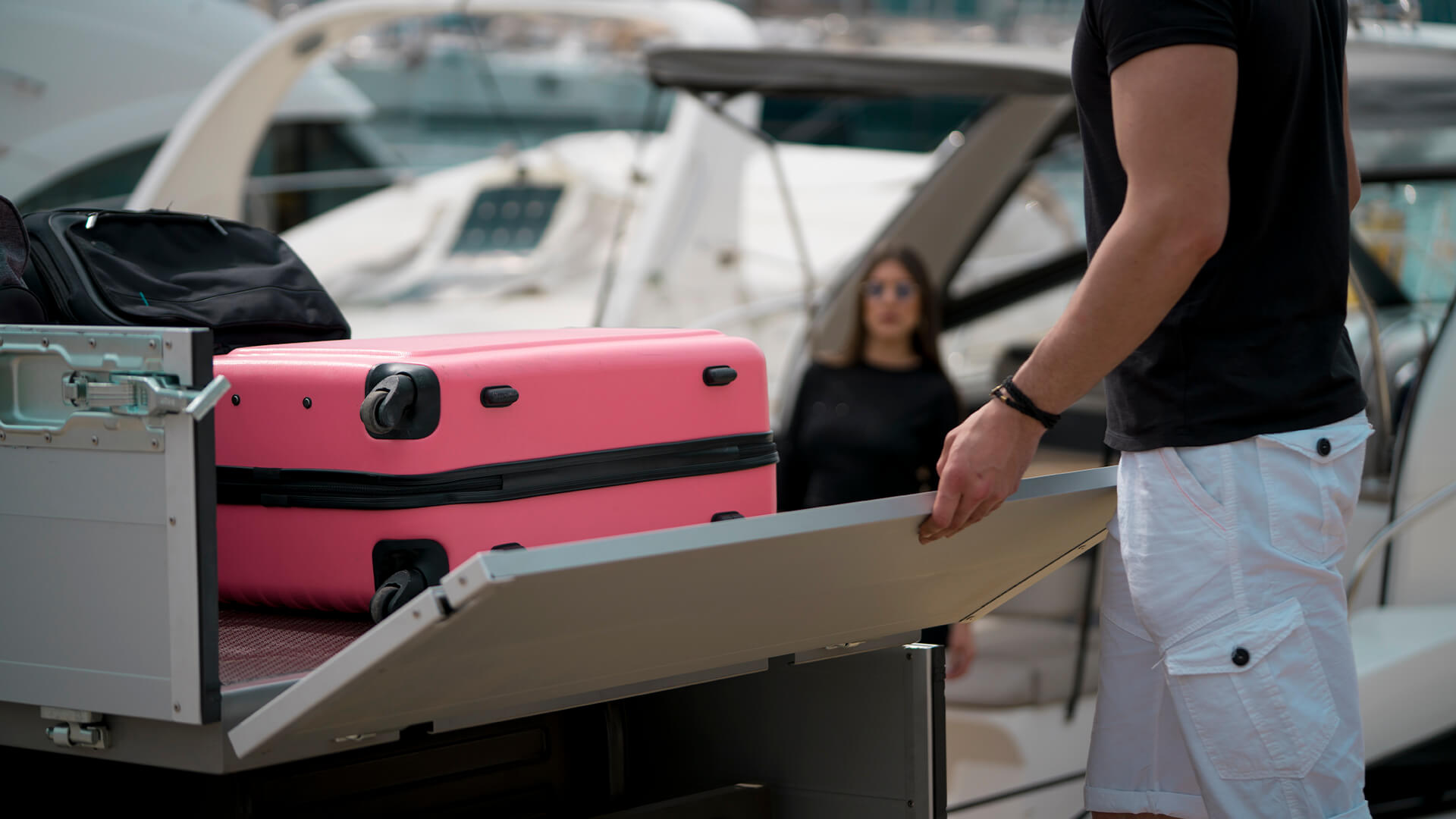

3-Side Open Aluminum Cargo Box	51.1"x70.8"x15.7" (1300x1800x400 mm)
Mesh Style Sided Steel Cargo Box	48.8"x68.9"x51.1" (1240x1750x1300 mm)
Closed Cargo Box	48.8"x68.9"x51.1" (1240x1750x1300 mm)
* w/ Suntop ** w/o Suntop

WARRANTY
Warranty	2 years full warranty (Less wearable items) 5 years limited warranty (Motor and motor control unit)
