TIMELESS DISCOVERY
PC-4 SL
TIMELESS DISCOVERY
PC-4 SL
TIMELESS DISCOVERY
PC-4 SL
TIMELESS DISCOVERY
PC-4 SL
ON BOARD CHARGING UNIT
With 110-220 Volt system voltage,
recharge within 4-6 hours
89 KM RANGE
With full charge
89 km range
0 EMISSION
%100 electrical,
environmentally friendly
AC MOTOR
Clean environment,
high performance
SPEED
50km/h
REGENERATIVE BRAKING SYSTEM
Increase of efficiency in
energy consumption
PC-4 SL| Technical Specifications
Vehicle Category & EU Type Approval Number: L6e-A e13*168/2013*00589*00
Power
Steering
& Suspension System
Braking System
Body & Chassis
Performance
General
Dimensions
Warranty
PC-4 Technical Specifications
| POWER ELEKTRİK-48 V (AC) |
||||||
| Motor Power |
AC 6 kW (8.20 hp) Rated 12.46 kW (16.95 hp) Peak 10 kW (13.60 hp) Rated 22.43 kW (30.50 hp) Peak |
|||||
|---|---|---|---|---|---|---|
| Battery |
Lead-Acid Battery Package 8x6V (11.8 kWh) Lithium Battery Package (10.8 kWh) |
|||||
| Charge Unit |
Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@18A/48V Lithium Battery Package 3.3 kW Onboard Charge Unit 85-265 VAC@40A/48V |
|||||
| Motor Control Unit |
AC AC CURTIS 1234SE CURTIS 1236SE |
|||||
| STEERING & SUSPENSION SYSTEM | |||||
| Steering | Self-compensating double reduction helical rack-and-pinion | ||||
|---|---|---|---|---|---|
| Suspension Front |
Fully independent McPherson style strut suspension | ||||
| Suspension Rear |
Semi independent, swing arm with coil springs over hydraulic shock absorbers | ||||
| BRAKE SYSTEM | |||||
| Service Brake | 4-wheel hydraulic drum brake system | ||||
|---|---|---|---|---|---|
| Parking Brake | Elektromagnetic parking brake | ||||
| BODY & CHASSIS | |||||
| Body | White, Midnight Blue, Red, Black | ||||
|---|---|---|---|---|---|
| Chassis |
Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint |
||||
| PERFORMANCE | |||||
| Max. Forward Speed | 31,07 mph - 50 kph | ||||
|---|---|---|---|---|---|
| Max. Reverse Speed | 5 mph (8 kph) | ||||
| Range |
Lead-Acid Battery Package 73 km ** Lithium Battery Package 89 km ** |
||||
| Max. Gradeability | 25% | ||||
| Charge Time |
Lead-Acid Battery Package 80% - 7 hrs 100% - 9 hrs Lithium Battery Package 80% - 4 hrs 100% - 6 hrs |
||||
| Turning Radius | 14.1 ft (4.3 m) | ||||
| ** EU: 134/2014 | |||||
| GENERAL | |||||
| Curb Weight |
Lead-Acid Battery Package 700 kg * Lithium Battery Package 570 kg * |
||||
|---|---|---|---|---|---|
| Passenger Capacity | 1+3 Passenger | ||||
| Load Capacity | 1323 lb (600 kg) | ||||
| Tyre Dimensions |
20.5 x 8-10 (6 ply) 22 x 9.50-10 Off-Road Tyre ** |
||||
|
* Standart Vehicle w/ batteries ** Only applied w/ lift kit option |
|||||

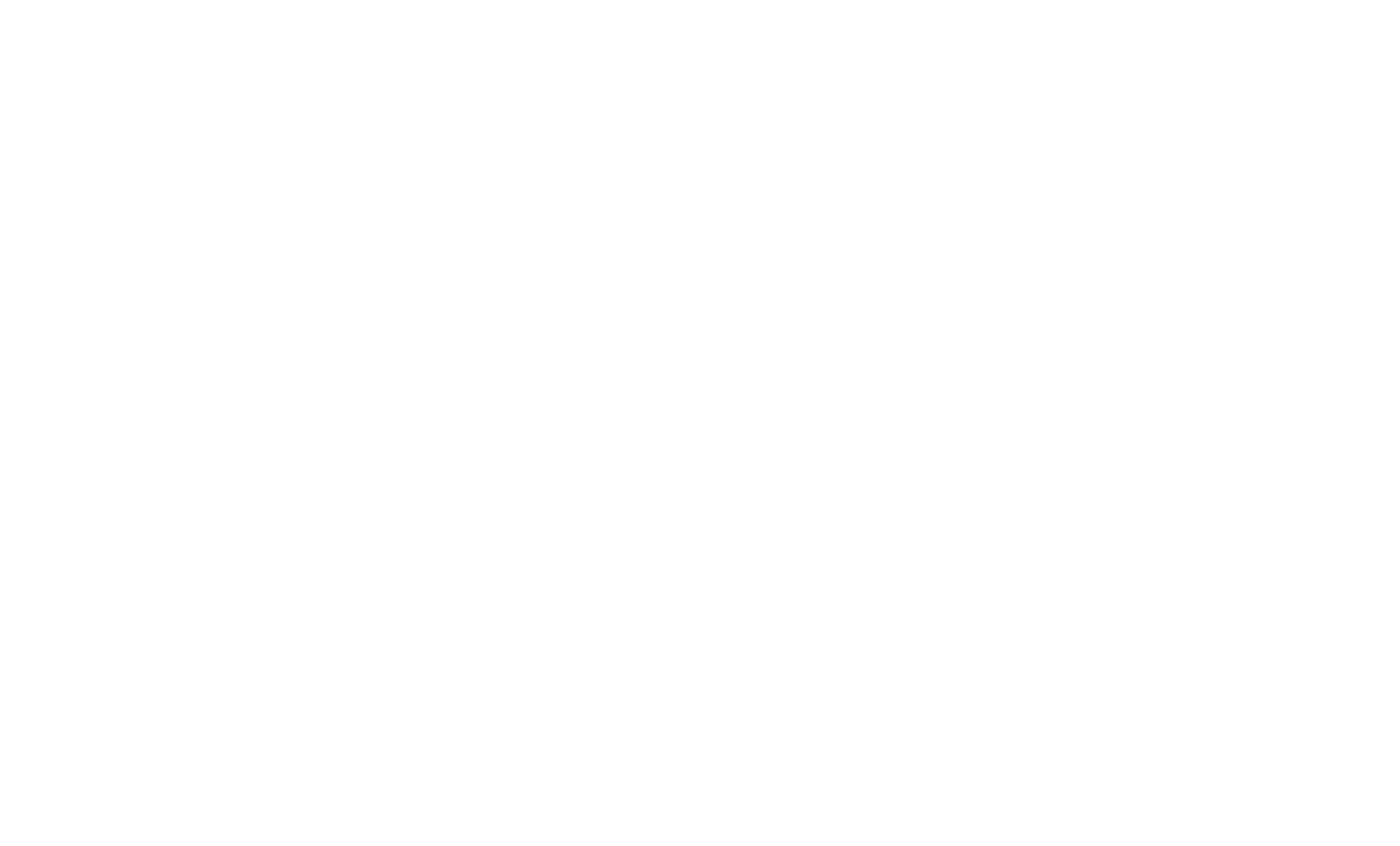

| DIMENSIONS Standart Vehicle w/o Options |
|||||
| Lenght | 131,8 in (3350 mm) | ||||
|---|---|---|---|---|---|
| Width | 48,2 in (1226 mm) | ||||
| Height | 73,1 in (1857 mm) | ||||
| Wheelbase | 96,8 in (2460 mm) | ||||
| Ground Clearance | 5,5 in (140 mm) | ||||
| WARRANTY | |||||
| Warranty |
2 years full warranty (Less wearable items) 5 years limited warranty (Motor and motor control unit) |
||||
|---|---|---|---|---|---|
PC-4 SL Technical Specifications
| POWER ELEKTRİK-48 V (AC) |
||||||
| Motor Power |
AC 6 kW (8.20 hp) Rated 12.46 kW (16.95 hp) Peak 10 kW (13.60 hp) Rated 22.43 kW (30.50 hp) Peak |
|||||
|---|---|---|---|---|---|---|
| Battery |
Lead-Acid Battery Package 8x6V (11.8 kWh) Lithium Battery Package (10.8 kWh) |
|||||
| Charge Unit |
Lead-Acid Battery Package DELTA-Q QuiQ 1000 Onboard Charge Unit 110-220 VAC@18A/48V Lithium Battery Package 3.3 kW Onboard Charge Unit 85-265 VAC@40A/48V |
|||||
| Motor Control Unit |
AC AC CURTIS 1234SE CURTIS 1236SE |
|||||
PC-4 Technical Specifications
| STEERING & SUSPENSION SYSTEM | |||||
| Steering | Self-compensating double reduction helical rack-and-pinion | ||||
|---|---|---|---|---|---|
| Suspension Front |
Fully independent McPherson style strut suspension | ||||
| Suspension Rear |
Semi independent, swing arm with coil springs over hydraulic shock absorbers | ||||
PC-4 Technical Specifications
| BRAKE SYSTEM | |||||
| Service Brake | 4-wheel hydraulic drum brake system | ||||
|---|---|---|---|---|---|
| Parking Brake | Elektromagnetic parking brake | ||||
PC-4 Technical Specifications
| BODY & CHASSIS | |||||
| Body | White, Midnight Blue, Red, Black | ||||
|---|---|---|---|---|---|
| Chassis |
Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint |
||||
PC-4 Technical Specifications
| PERFORMANCE | |||||
| Max. Forward Speed | 31,07 mph - 50 kph | ||||
|---|---|---|---|---|---|
| Max. Reverse Speed | 5 mph (8 kph) | ||||
| Range |
Lead-Acid Battery Package 73 km ** Lithium Battery Package 89 km ** |
||||
| Max. Gradeability | 25% | ||||
| Charge Time |
Lead-Acid Battery Package 80% - 7 hrs 100% - 9 hrs Lithium Battery Package 80% - 4 hrs 100% - 6 hrs |
||||
| Turning Radius | 14.1 ft (4.3 m) | ||||
| ** EU: 134/2014 | |||||
PC-4 Technical Specifications
| GENERAL | |||||
| Curb Weight |
Lead-Acid Battery Package 700 kg * Lithium Battery Package 570 kg * |
||||
|---|---|---|---|---|---|
| Passenger Capacity | 1+3 Passenger | ||||
| Load Capacity | 1323 lb (600 kg) | ||||
| Tyre Dimensions |
20.5 x 8-10 (6 ply) 22 x 9.50-10 Off-Road Tyre ** |
||||
|
* Standart Vehicle w/ batteries ** Only applied w/ lift kit option |
|||||
PC-4 Technical Specifications
| DIMENSIONS Standart Vehicle w/o Options |
|||||
| Lenght | 131,8 in (3350 mm) | ||||
|---|---|---|---|---|---|
| Width | 48,2 in (1226 mm) | ||||
| Height | 73,1 in (1857 mm) | ||||
| Wheelbase | 96,8 in (2460 mm) | ||||
| Ground Clearance | 5,5 in (140 mm) | ||||
PC-4 Technical Specifications
| WARRANTY | |||||
| Warranty |
2 years full warranty (Less wearable items) 5 years limited warranty (Motor and motor control unit) |
||||
|---|---|---|---|---|---|
